PRODUCT

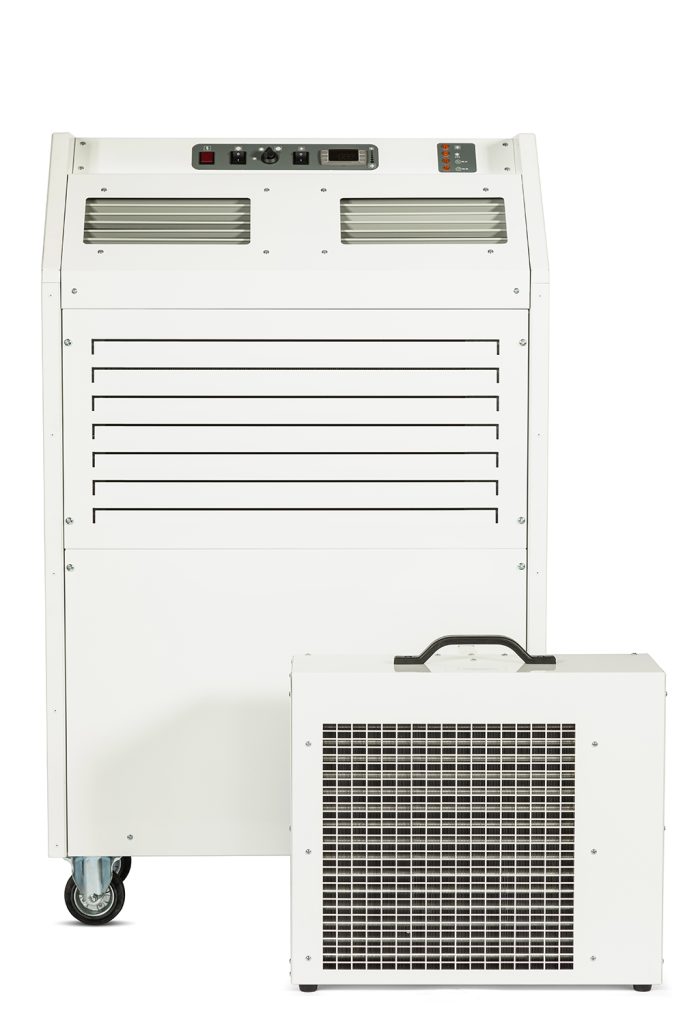

Broughton MCSe 7.3

As a water cooled split the Mighty Cool MCSe 7.3 is the most efficient and effective form of split portable air conditioning available as it removes the de rating effect of the condenser by using a plate heat exchanger instead. This also helps keep the sound down as it moves one of the fans outside the area needing cooling.
This low GWP version of the Broughton industry standard MCWS250 sees it upgraded to meet modern environmental standards while still promising up to 7.3kW of cooling without the need for ducting. This makes the MCSe 7.3 ideal for use in data centres, especially as the main unit and outdoor condenser can be positioned up to 35M apart.
With digital thermostatic control, twin louvre directional and variable speed control the MCSe 7.3 can have it’s air delivery tailored to suit a range of needs, while a status panel lets you know what the units is doing at a glance and low temperature operation is also included as standard.
With all this in mind, the MCSe 7.3 has reset the standard for portable split air cooling equipment.
| Cooling Capacity (kW) | 7.4 |
| Heating Capacity (kW) | |
| Dehumidifying Capacity (l/day) | |
| Cooling Power (amps) | 12.5 |
| Heating Power (amps) | |
| Dehumidifying Power (amps) | |
| Power Source | 13A 230V |
| Flow volume (m³/hr) | 1,100 |
| Fan speeds | |
| Operating range (°c) | 15-35 |
| Sound pressure level (dBa) ID / OD | 65 / 64 |
| Warm air exhaust duct diameter (mm) | |
| Min/Max umbilical length (m) | 5 / 35 |
| Cold air duct diameter (mm) | |
| Net weight (kg) ID / OD | 90 / 22 |
| Height | 1308 |
| Width | 805 |
| Depth | 382 |
| Refrigerant | R454c |
| Condensate tank volume (l) |
