Master B150 Direct Fired Oil

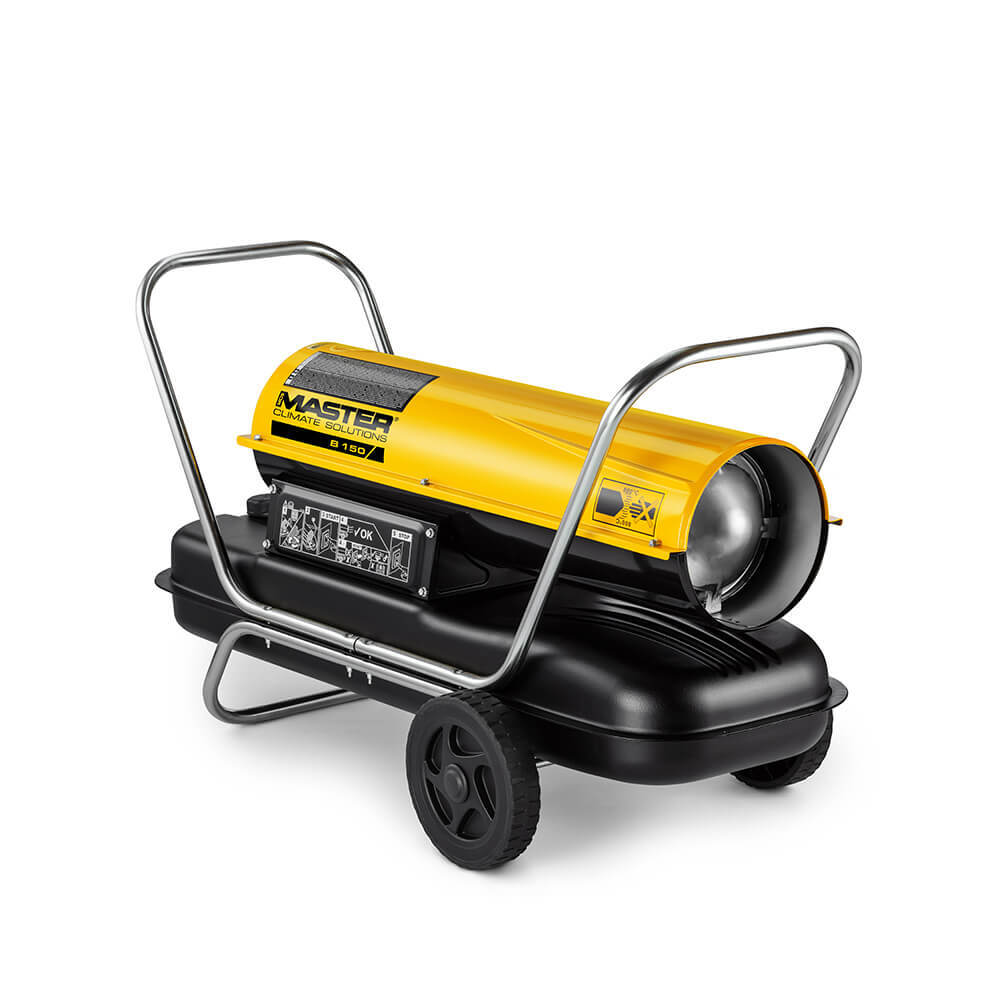

B150 Direct Fired Oil Heater
- Low pressure, direct oil-fired heater
- High air flow
- Two oil filters – oil tank filter & suction filter
- Thermally protected motor
- Electronic flame control with photocell
- Oil tank level indicator
- These heaters can burn: biofuel HVO 100, diesel or kerosene
- IP41 rated
Master B150 Direct Fired Oil Heater Operating Manual
Master B150 Direct Fired Oil Heater Technical Specification
Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are ideal for open or well-ventilated areas like factories, warehouses or construction sites. Master direct heaters are known for their efficiency, robustness, ease of use and operational safety.
| Max output (kW) | 44.0 |
| Power (amps) | 1.2 |
| Power source | 13A 230V |
| Flow volume (m³/hr) | 900 |
| Operating range (°c) | - |
| Fuel Tank Capacity (l) | 44 |
| Fuel Consumption (l/hr) | 4.2 |
| Sound pressure level (dBa) | - |
| Net weight (kg) | 25 |
| Dimensions (H x W x D) | 480 x 600 x 1,075 |
