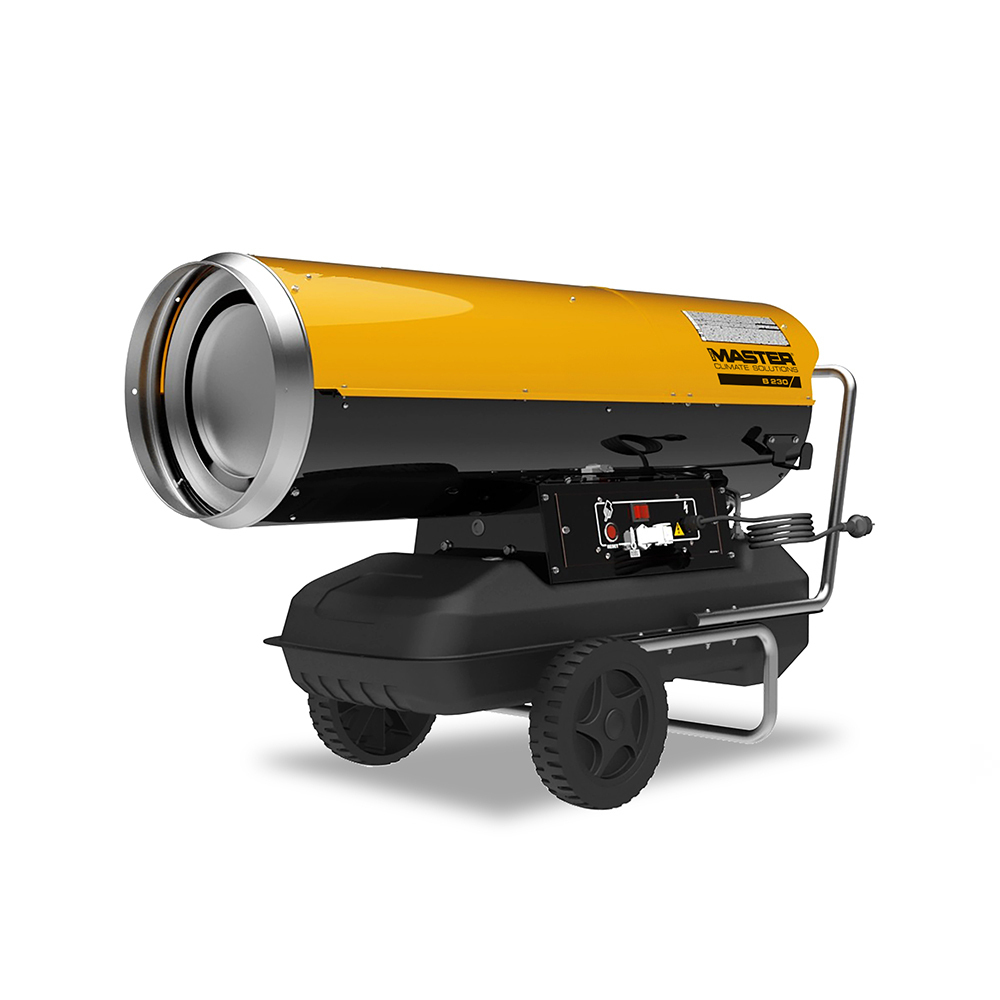

Master B230 Direct Fired Oil
B230 Direct Fired Oil Heater
- High pressure, direct oil-fired heater
- Post ventilation
- Three oil filters – oil pump filter, suction filter & inlet filter
- Thermally protected motor
- Electronic flame control with photocell
- Oil tank level indicator
- These heaters can burn: biofuel HVO 100, diesel or kerosene
- IP44 rated
Master B230 Direct Fired Oil Heater Operating Manual
Master B230 Direct Fired Oil Heater Technical Specification
Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are best for open or well ventilated areas like factories, warehouses or construction sites. Master direct heaters are known as very efficient and robust as well as safe and easy in use.
| Max output (kW) | 65.0 |
| Power (amps) | 3.5 |
| Power source | 13A 230V |
| Flow volume (m³/hr) | 3,000 |
| Operating range (°c) | - |
| Fuel Tank Capacity (l) | 65 |
| Fuel Consumption (l/hr) | 6.2 |
| Sound pressure level (dBa) | - |
| Net weight (kg) | 57 |
| Dimensions (H x W x D) | 790 x 575 x 1,235 |
